Alpha Alumina Nanoparticle Conjugation to Cysteine Peptidase A and B: An Efficient Method for Autophagy Induction


PDF - Export to EndNote - PubMed Central XML format - PubMed Central XML format - PubMed Central XML format
PMID: 28496946 (PubMed) - PMCID: PMC5410132 - View online: PubReader
Volume 9, Issue 2, April-June , Page 71 to 81
Tuesday, March 1, 2016 :Received , Sunday, June 12, 2016 :Accepted



  • - Department of Immunology, Faculty of Medical Sciences, Tarbiat Modares University, Tehran, Iran
  • Corresponding author Department of Immunology, Faculty of Medical Sciences, Tarbiat Modares University, Tehran, Iran, Tel: +98 21 82883090 E-mail: zavarana@modares.ac.ir
    - Department of Immunology, Faculty of Medical Sciences, Tarbiat Modares University, Tehran, Iran

  • - Department of Immunology, Faculty of Medical Sciences, Tarbiat Modares University, Tehran, Iran

Abstract:

Background: Autophagy as a cellular pathway facilitates several immune responses against infection. It also eliminates invading pathogens through transferring content between the cytosol and the lysosomal vesicles and contributes to the cross-presentation of exogenous antigens to T lymphocytes via MHC class I pathway. Autophagy induction is one of the main targets for new drugs and future vaccine formulations. Nanoparticles are one of the candidates for autophagy induction. Cysteine Peptidase A (CPA) and Cysteine Peptidase B (CPB) are two members of papain family (Clan CA, family C1) enzyme that have been considered as a virulence factor of Leishmania (L.) major, making them suitable vaccine candidates. In this research, Leishmania major cysteine peptidase A and B (CPA and CPB) conjugation to alpha alumina nanoparticle was the main focus and their entrance efficacy to macrophages was assessed.
Methods: For this purpose, CPA and CPB genes were cloned in expression vectors. Related proteins were extracted from transformed E. coli and purified using Ni affinity column. Alpha alumina nanoparticles were conjugated to CPA/CPB proteins using Aldehyde/Hydrazine Reaction. Autophagy induction in macrophages was assessed using acridine orange staining.
Results: CPA/CPB protein loading to nanoparticles was confirmed by Fourier Transform Infrared Spectroscopy. α-alumina conjugated CPA/CPB antigen uptake by macrophages at different concentrations was confirmed using fluorescence microscope and flowcytometry. Highly efficient CPA/CPB protein loading to α-alumina nanoparticles and rapid internalization to macrophages introduced these nanocarriers as a delivery tool. Acridine orange staining demonstrated higher autophagy induction in CPA/CPB protein conjugated with α-alumina nanoparticles.
Conclusion: α-alumina nanoparticles may be a promising adjuvant in the development of therapeutic leishmania vaccines through antigen delivery to intracellular compartments, induction of autophagy and cross presentation to CD8 lymphocytes.







Introduction :

Autophagy as a cellular pathway facilitates several immune responses against infection. It also eliminates invading pathogens through transferring content between the cytosol and the lysosomal vesicles. An interaction between autophagy and innate immune signaling pathways modulates inflammatory cytokine productions in response to microbial antigen stimulation 1. Autophagy contributes to the cross-presentation of exogenous antigens to T lymphocytes via MHC class I pathway. Therefore, due to its anti-microbial benefits, autophagy induction is one of the main targets for new drugs and future vaccine formulations 2,3. Nanoparticles are one of the candidates for autophagy induction. A number of studies have reported changes in the basal level of autophagy 4,5. Different mechanisms were used to induce autophagy by different nanoparticles 6, as reviewed carefully by Panzarini et al. The most common mechanism is interaction of nanoparticles with either p62 protein during ubiquitination or aggregated intracellular protein that mimics the invading pathogen and activates LC3 pathway 6. Beside the functional properties of nanoparticles, they have gained significant attention in recent years due to the nano-sized structures that are taken up easily by cells 7, indicating nanoparticles are also ideal candidates to deliver low-molecular-weight proteins, like antigens. Biocon-jugation of nanoparticles with proteins is considered as an efficient method for simultaneous transport to cells and control of the number of protein molecules per Nanoparticulate Carrier (NPC) 7. This technique is also applied to label the functional groups on biomolecules using either another type of biomolecule or synthetic probes. Cysteine Peptidase A (CPA) and Cysteine Peptidase B (CPB) are two members of papain family (Clan CA, family C1) enzyme that have been considered as a virulence factor of Leishmania (L.) major, making them suitable vaccine candidates. Some studies have also shown that autophagy plays an important role in clearance of the parasite including L. species 8. Nanoparticles include a variety of materials, like dendrimers, solid lipids, polymers, silicon/carbon materials and magnetic nanoparticles 1,2.
Some nanoparticles like polyamidoamine (PAMAM) 9, gold 10, iron 11 and buckminsterfullerene (C60) 12 are applied for autophagy induction after being exposed to cells.  Furthermore, a study has indicated the key role of aluminium oxide or alpha-alumina (α-alumina/α -Al2O3) in efficient delivery of antigens to the antigen-presenting cells using autophagosomes, which is then presented to T cells through autophagy 13. In the current study, it was aimed to describe the exact steps of conjugation method and characterization of conjugated products. Furthermore, an attempt was made to evaluate autophagy induction by chemo-selective ligation of CPA and CPB with α-alumina nanoparticles in peritoneal macrophages of BALB/c mice using cytotoxicity assay.




Materials and Methods :

The material in this study included GF-1 plasmid DNA extraction kit (Vivantis CO., Malaysia), CloneJET PCR Cloning Kit (Thermo Fisher Scientific, Inc., USA), pET28a, expression vector (Novagen, USA), IPTG (Sinaclon, Iran), kanamycin (Sigma, Germany), Coomassie Brilliant Blue R-250 (Thermo Fisher Scientific, USA), Ni–NTA agarose (Qiagen, USA), Anti-His antibody ( Bioligand, USA), IgG-horseradish peroxidase (HPR)-conjugated secondary antibody (Abcam, USA), EDC (G-Biosciences, USA), SANH (Bioworld, USA), FITC (Sigma-Aldrich, USA), 3-MA (Sigma, Germany), and rapamycin (Sigma, Germany).
Ethical consideration: In this research study, BALB/c mice were used and kept according to the Guide for the Use and Care of Laboratory Animals as approved by the Ethics Committee of Tarbiat Modares University. This study was conducted at Tarbiat Modares University, Tehran, Iran.
Cloning of cpa and cpb genes in expression vector: L. major promastigotes (MHRO: IR: 75: ER) were isolated from infected BALB/c mice as described by Rafati et al 14 and then used for RNA extraction and cDNA synthesis. The CPA and CPB related coding sequences were amplified by CPA and CPB forward and reverse primers
CPA F: 5/GACGGATCCGCCCCCAGTGGTGTGATG TCG-3/,
CPA R: 5/GGGAAGCTTCTAGGCCGTTGTCGTCGG CAC-3)
CPB F: 5/CGGGATCCGATGCGGTGGACTGGCG CGA-3/,
CPB R: 5/GCGCAAGCTTCTACACGTACTGGCA AATG-3/).
In all the above-mentioned primers, BamHI (forward) and Hind III (reverse) were used as restriction sites (represented as bold letters). The following steps were then taken for the amplification program: 98°C for 1 min, 60°C for 2 min and finally 72°C for 1 min for 35 cycles 14. The CPA (650 bp) and CPB (950 bp) blunt-ended PCR products were gel purified using GF-1 plasmid DNA extraction kit (Vivantis CO., Malaysia) and cloned in pJET1.2 plasmid vector using CloneJET PCR Cloning Kit (K1231; Thermo Fisher Scientific, Inc., USA) according to the manufacturer’s protocol. Recombinant pJET1.2 plasmids were verified using common colony-Polymerase Chain Reaction (PCR) and restriction enzyme digestion followed by DNA sequencing. CPB- and CPA-coding DNA was then sub-cloned by insertion between BamHI and HindIII sites in pET28a (expression vector) (Novagen, USA). Constructed recombinant plasmids were subsequently verified by PCR, restriction enzyme digestion and DNA sequencing.
Recombinant protein expression and purification: Recombinant vectors, pET28a-CPB and -CPA, were introduced into Escherichia coli (E. coli) BL21 (DE3) expression hosts. Expression of recombinant CPA and CPB (rCPA and rCPB) was induced by adding 1 mM isopropyl-l-thio-fl-D-galactopyranoside (IPTG) (Sinaclon, Iran) and kanamycin (Sigma, Germany) to the culture media at an initial Optical Density (OD) of 0.7 at 600 nm. One-four hr after the induction, the samples were screened and analyzed by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE; BioRad, Germany) with 12.5% resolving gel, followed by Coomassie Brilliant Blue R-250 (Thermo Fisher Scientific, USA) staining 15. Cultures were pelleted, washed with Phosphate Buffer Saline (PBS), and suspended in lysis buffer. Suspensions were sonicated for 3×5 min in 0.6 s pulses of 80% amplitude. Cell lysates were centrifuged at 18,000 g for 20 min at 4°C to separate soluble (clear lysate) and solid materials (inclusions) 15. For purification of the rCPA and rCPB from inclusions, each pellet was dissolved in 8 M urea buffer (pH=8) and the debris was removed by centrifugation. Subsequently, 1 ml Ni–NTA agarose (50%) (Qiagen, USA) was added to each cell lysate (5 ml) and incubated on a rotary shaker at room temperature for 1 hr. The mixture was loaded onto a column, and resin was washed twice with four volumes of 8 M buffer urea at pH=6.3 and at pH=5.9. Finally, rCPA and rCPB were eluted with elution buffer (pH=4.5). The eluted proteins were analyzed by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) and western blot analysis15.
Removal and resolubilization of rCPA and rCPB: To attain a higher concentration of the purified rCPA and rCPB and urea exclusion, on-column resolubilization was applied using a series of wash-buffers with decreasing urea concentration. This procedure was based on purification under hybrid conditions, suggested by Invitrogen (Ni-NTA Purification System; Invitrogen, USA) 15.
Western blot analysis: Proteins (rCPA and rCPB) were separated on 12% gels (Bio-Rad Laboratories, USA) and then transferred to nitrocellulose membranes in a semi-dry transfer cell (Trans-blot SD; Bio-Rad, Germany). The transfer buffer was composed of 25 mM Tris-base (pH=8.3), 192 mM glycine, and 15% methanol. Following transfer, membranes were blocked for 2 hr at room temperature using Tris Buffered Saline (TBS; 10 mM Tris-HCL pH=7.6, 150 mM NaCl) containing 4% skim milk that was followed by overnight incubation at 4°C with Anti-His antibody (1:5000 dilution; Bioligand, USA). Membranes were washed five times with TBST (TBS, 1% Tween-20), incubated for 2 hr in anti-mouse IgG-Horseradish Peroxidase (HPR)-conjugated secondary antibody (Abcam, USA), and diluted in TBST solution at 1:10 000 dilution. Unbound secondary antibody was removed by washing three times with TBST. Enhanced Chemiluminescence (ECL) was used as substrate.
α-alumina particles-conjugated with CPA and CPB: α-alumina particles were purchased from US Research Nanomaterials, Inc., USA (Purity: 99+%; Stock number: US3008; 80 nm). Firstly, α-alumina particles were functionalized with carboxyl group. For this purpose, suspensions of α-alumina particles were prepared by mixing 1 g of particles with 20 ml of water followed by sonication for 30 min to break agglomerates, while succinic acid was added to the particle suspensions at 0.1 M, stirred for 60 min at 25°C, and then heated for 120 min at 100°C. Afterwards, the particles were centrifuged for 30 min at 1500 g. The supernatant was discarded and the particles were freeze-dried. After preparation of functionalized α-alumina particles, three following steps were taken to reach the end product.
Step 1: Modification of α-alumina particles using benzaldehyde compound: About 4 mg 1-ethyl-3-(3-dimethylaminopropyl) carbodiimide hydrochloride (EDC; G-Biosciences, USA) were dissolved in 100 µl Dimethyl Formaldehyde (DMF), added to the α-alumina nanoparticle containing carboxyl group and stirred at 25°C. The solution was added slowly to the combination of aminobenzaldehyde and stirred for 24 hr at 25°C. Afterwards, the particles were centrifuged for 30 min at 1500 g, while the supernatant was discarded and the cell pellets were freeze-dried.
Step 2: Modification of CPA and CPB proteins using hydrazine reagent: About 2 mg succinimidyl 6-hydrazinonicotinate acetone hydrazone (SANH; Bioworld, USA) was dissolved in 100 µl DMF. Then, CPA and CPB proteins were added to the above compounds at 0.5 mg/ml concentration 16.
Step 3: Modification of CPA and CPB proteins conjugated to α-alumina particles using the aldehyde/hydrazine reaction16: Benzaldehyde-modified α-alumina particles and SANH-modified CPA and CPB proteins were dissolved separately in citrate buffer (100 mM sodium citrate, 150 mM NaCl, pH=6.0) 16. Then, a proper portion of each solution was mixed to another one to obtain a molar ratio with desired properties. The combination was remained for at least 2 hr at room temperature.
Characterization of α-alumina nanoparticle-conjugated with CPA and CPB proteins: To determine the characteristics of nanoparticle-conjugated with CPA and CPB proteins, the variations in structure of particles were investigated using Fourier Transform Infrared Spectroscopy (FTIR) and Ultraviolet (UV)-visible spectrophotometer. Transmission Electronic Microscopy (TEM) was used to determine the size and morphology of conjugated and non-conjugated nanoparticles.
Determination of loading efficiency of α-alumina nanoparticle-conjugated with CPA and CPB proteins: The sample was centrifuged at 3000 g for 30 min at 4°C. The amounts of free CPA or CPB proteins were determined in the clear supernatant using UV-visible spectrophotometry at 280 nm and Bradford protein assay. Loading efficacy of α-alumina nanoparticles was determined according to following equation, % Loading= A-B/A×100, where "A" is the total amounts of CPA and CPB used for conjugation and "B" is the free amounts of CPA and CPB in the supernatant.
Determination of release potential of α-alumina-conjugated with CPA and CPB proteins: The particular amount of α-alumina-conjugated with CPA and CPB proteins was suspended in separate tubes containing equal volumes of either 0.2 mol/L PBS solution (pH=7.4) or citrate sodium buffer (pH=5.4) and incubated by shaking (600 rpm) at 37°C. At appropriate time intervals (1, 2, 4, 6, 10, 22, 34, 48, and 72 hr), one tube was removed and the sample was centrifuged at 9,000 g for 30 min at 4°C. The amount of protein released into the supernatant was measured according to the following formula, % Release=D/C×100, where "D" is the free amounts of CPA and CPB, and "C" is the total amounts of CPA and CPB.
Preparation of FITC-labeled α-alumina-conjugated with CPA and CPB proteins: A solution of at least 2 mg/ml of CPA and CPB proteins was prepared in 0.1 M sodium carbonate buffer, pH=9. The fluoroisothiocynate (FITC; Sigma-Aldrich, USA) was dissolved in 1 mg/ml anhydrous dimethyl sulfoxide (DMSO, Sigma, Germany). For each 1 ml of α-alumina-conjugated with CPA and CPB solution, 50 µl of FITC solution was added very slowly in 5 µl aliquots while stirring the solution gently and continuously. After adding the required amount of FITC, the reaction was continued for 8 hr at 4°C. Then, 50 mM NH4Cl was added to the solution and incubated for 2 hr at 4°C. Finally, xylene cyanol (XC, Sigma, Germany) and glycerol (Sigma, Germany) were added to 0.1% and 5% concentrations, respectively. Free FITCs were separated from the conjugated ones using Amicon filters (Sigma, Germany). The ratio of fluorescein to protein of the product was estimated by measuring the absorbance at 495 and 280 nm 17-19.
Peritoneal macrophage preparation and uptake assay: Four days after intraperitoneal (IP) injection of 2 ml Brewer thioglycollate medium (4% w/v) into BALB/c mice, thioglycollate-elicited macrophages were harvested by IP injection and plated with 10 ml cold Roswell Park Memorial Institute (RPMI)-1640 medium (Gibco, USA). Peritoneal exudate cells were cultured at 10-cm petri dishes for 6 hr. Non-adherent cells were removed, while adherent cells were detached and centrifuged at 400 g for 10 min. Cells were diluted to 104 cells/ml using Dulbecco's Modified Eagle Medium (DMEM) (Gibco, USA) supplemented with 10% Fetal Bovine Serum (FBS) and cultured at 104 cells/well in 6-well plates 20. To assess the uptake capacity of nanoparticles-conjugated proteins, FITC-labeled proteins were added to macrophages at 200 µg/ml (200 µg alpha-alumina containing 16 µg CPA and CPB protein), 100 (100 µg alpha-alumina containing 8 µg CPA and CPB proteins), 10 µg/ml, 5 µg/ml, as well as 1 µg/ml concentrations and incubated for 20 min on ice 21. Then, unattached particles were washed and macrophages were incubated for 60 min at 37oC to complete internalization of attached particles. At the end of incubation time, macrophages were analyzed using flto cytometry and a fluorescence microscopy.
Cytotoxicity assay (MTT Assay): Cytotoxicity evaluation of α-alumina nanoparticle was performed using 3-(4,5-dimethylthiozol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT) assay which was based on the reduction of the dye MTT to formazan crystals, an insoluble intracellular blue product. Macrophages were cultured at 105 cells/well in 6-well plates and allowed to attach by overnight incubation. Macrophages were treated with series of diluted (0.01, 0.1, 1, 10, 100 and 1000 μg/ml) α-alumina nanoparticles for 48 hr. At the end of the exposure, 10 µl MTT was added to each well to a final concentration of 5 mg/ml, and cells were then incubated for 4 hr at 37oC. The medium was then removed carefully, while 150 µl DMSO was added to the cells and the plates were read immediately in a microplate reader (Eppendorf, USA) at 570 nm.
Acridine orange staining: Detection of acidic vesicular organelles (AVO): Macrophages were cultured at 105 cells/well in 6-well plates and allowed to attach by overnight incubation. Macrophagse were then treated with 100 μg α-AL2O3, 100 μg α-AL2O3-CPA (100 μg containing 8  µg CPA protein µg/ml), 100 μg α-AL2O3-CPA (100 μg containing 8 µg CPA protein µg/ml), 100 μg α-AL2O3-CPB (100 μg containing 8 µg CPB protein µg/ml), 8 μg CPA and 8 μg CPB, for 48 hr. At the end of incubation time, cells were washed twice with PBS and stained with 1 µg/ml acridine orange (Invitrogen, USA) in PBS for 15 min. Subsequently, the samples were observed under an inverted fluorescence microscope (Zeiss, Germany) 22. Also, 3-methyladenine (3-MA; 10 Mm, Sigma, Germany) was used as an agent which potently inhibits autophagy-dependent protein degradation and suppresses the formation of autophagosomes, as well as rapamycin 23 (50 nM; as a control, Sigma, Germany) that is identified as a well-known inhibitor of the PI3K-mTOR pathway and an autophagy inducer 24.
Statistical analysis: One-way analysis of variance (ANOVA) was used to determine the level of statistical significance at p<0.05. All analyses were performed using GraphPad Prism software (GraphPad Software Co., USA) version 5.04.




Results :

Analysis of CPA and CPB gene cloning: To confirm the CPA and CPB related cDNAs insertion in pJET1.2 vector, DNA was extracted from transformed E. coli DH5α and related sequences were amplified using specific primers to both genes. In addition, extracted plasmids were digested using HindIII and BamH1 which created 650 and 950 bp fragments for CPB as illustrated in figures 1A and B, respectively. Digestion analysis was also used to determine CPA and CPB subcloned into pET28a expression vector, as shown in figures 1D and C, respectively. Finally, DNA sequencing analysis of rCPA and rCPB plasmids revealed the complete identity with reference sequences, U43706 and U43705.
Analysis of rCPA and rCPB expression: Transformation of pET28a-CPA and -CPB plasmids into E. coli BL21 (DE3) strain resulted in the expression of 27 and 40 kDa proteins after IPTG induction. To validate the expression of CPA and CPB proteins, at different time intervals post IPTG induction, bacterial cell lysates were prepared, while total proteins were extracted and purified using His-tag affinity chromatography. Figure 2 shows the bands of crude protein extract after the transformation of pET28a-CPA and -CPB into E. coli BL21 (DE3) at 1 to 6 hr post IPTG induction, as determined by SDS-PAGE analysis. Figures 2A and B also demonstrate the protein bands at 27 and 40 kDa in transformed bacteria as compared to non-transformed E. coli that represent the rCPA and rCPB proteins, respectively. After protein purification using Affinity Ni-Charged Resin, western blot analysis was used to confirm recombinant proteins. Anti His-tag antibodies were detected using HRP-conjugated anti-mouse IgG and ECL substrate. Figures 3A and B show the His-tag position on the membrane that reflects the rCPA and rCPB proteins at the same level of 27 and 40 kDa protein markers.
FTIR analysis: The molecular structure of the α-alumina powder was further confirmed by Fourier Transform-Infrared Spectroscopy (FTIR). An FTIR spectrum was generated by the absorption and transmission of electromagnetic radiation in the frequency range of 400-4000 cm-1. The α-alumina spectrum is shown in figure 4A.  According to FTIR spectra, the bands in the region of 400-1000 cm-1 were generally associated with stretching vibrations of Al-O. There were some wide and high peaks of Al-O stretching in the range of 500-1000 cm-1 that were related to the transitional phases of alumina and stable phase of α-alumina. The broad bands at 593 and 710 cm-1 corresponded to the vibrational frequencies with the internal coordinates of ν-AlO6 and ν-AlO4, respectively 25-28. New alterations were created in FTIR spectrum after different modification in α-alumina structure through new chemical bonding, which suggests a fingerprint for the generated material. As indicated in the FTIR spectra of benzaldehyde (Figure 4B), the bands in the 1626-2850 cm-1 region were associated with C=O and C-H stretch absorptions for benzaldehyde, while the bands in the 1665-3199 cm-1 region were related to C=O and N-H stretch absorptions in the amide bond between the carboxyl and amino groups in aminobenzaldehyde 29. In figure 4C, the bands in the 1165-3310 cm-1 region show N-N bond, NH2 stretching and NH2 wagging in hydrazine bond. Bands in regions 529, 786, 1020, 1623, and 3224 cm-1 indicate C=O, R-NH2, C-N, NH3, and NH stretch absorptions, respectively, in amino acids of proteins conjugated to α-alumina spectra 27 (Figures 4D and E).
Transmission electron microscopy (TEM): Field Emission-Transmission Electron Microscopy (FE-TEM) was used to identify the morphology of α-alumina nanoparticle. TEM shows agglomerated particles of 80-150 mm size (Figure 5).
UV-visible analysis: Figure 6 shows the UV-visible absorption spectra of AL2O3 nanoparticles suspended in DMSO. A strong absorption peak at 200-400 nm was clearly observed, which confirmed the presence of AL2O3 nanoparticles. The absorption peak of α-alumina nanoparticles was found at 245 nm. CPA and CPB proteins conjugated to α-alumina had an absorption peak at both 242 and 280 nm.
Determination of conjugation efficiency of CPA and CPB proteins conjugated to α-alumina: Different concentrations of α-alumina particles (10-500 mg/ml) were used for conjugation to CPA and CPB proteins at 500 μg/ml. After conjugation, α-alumina nanoparticles were precipitated and the free amounts of CPA and CPB proteins were determined by Bradford protein assay. According to obtained results, the maximum binding capacity (90%) was observed at 10 mg/ml of α-alumina concentration (Table 1).
Release studies: Our observations showed that about 79% and 81% of the loaded CPA and CPB, respectively, were released within 72 hr of incubation in citrate sodium buffer. The release profile of CPA- and CPB-loaded nanoparticles exhibits an initial burst release of about 57 and 58%, respectively, in the first 40 hr, followed by a slow release of 20% for the subsequent 30 hr (Figure 7).
Internalization potential of α-alumina nanoparticle-conjugated with CPA/CPB: To determine the internalization potential and best concentration of α-alumina nanoparticles in order to internalize all the target cells within 30 min, CPA and CPB proteins were labeled with FITC before being conjugated to α-alumina nanoparticles. Peritoneal macrophages were treated with different concentrations of FITC-labeled CPA and CPB conjugated to nanoparticle as explained above. As florescent microscopy results illustrated in figure 8, weak particle internalization was observed at 1, 5 and 10 μg/ml concentrations. The fluorescence microscopy images were analyzed using Image J software program. According to semi-quantitative results, 83 and 87%  of macrophages received CPA and CPB proteins conjugated to nanoparticles, respectively, at 100 μg/ml concentration. Also, for further quantification of the uptake percent, the same treatments were analyzed using flow cytometry method. As demonstrated in figure 9B, 1 and 5 μg/ml treated macrophages were represented at 8.2 and 33.3% of FITC-labeled CPA conjugated to nanoparticle, respectively, while the values increased significantly to 90.3%, 94.55% and 96.7% for 10, 100 and 200 μg/ml, respectively. There was no significant value between 100 and 200 μg/ml concentrations. Similar flow-cytometry results were observed for the internalization potential of FITC-labeled CPB conjugated to α-alumina nanoparticle, as represented in figure 9A.
Cytotoxicity assessment using MTT assay: MTT assay was used to examine the cytotoxicity of the α-alumina nanoparticles.  Peritoneal macrophages were treated on a medium containing different concentrations (0.01, 0.1, 1, 10, 100, and 1000 µg/ml) of the α-alumina nanoparticle. Cell viability was determined at 48 hr after treatment. MTT assay showed (Figure 10) more than 95% cell viability at 0.01-100 µg/ml concentrations. Cytotoxicity was observed at higher concentrations (≥1000 µg/ml) as cell viability reduced to 75% (Figure 10).
Autophagy induction triggered by α-AL2O3-CPA and -CPB: In this study, peritoneal macrophages from BALB/c were treated with α-AL2O3, α-AL2O3-CPA, α-AL2O3-CPB, CPA, and CPB and then the presence of autophagy after 48 hr was examined using fluorescence microscopy and AO staining. AO as a lysosomotropic dye accumulates in any acidic vacuole in a pH-dependent manner, meaning at acidic environment, AO emits bright red fluorescence 23,24. Figure 11 (A-L) depicts AVO or autophagosomes in autophagic cells using AO staining. Figure 11 also shows a significant increase in the intensity of orange color, indicating high amounts of AVOs in α-AL2O3-CPA (79%) and α-AL2O3-CPB (70%) as compared to α- AL2O3 (39%), CPA (35%), and CPB (34%), suggesting that there was a statistically significant increase regarding autophagy in macrophages treated with α-AL2O3-CPA and -CPB.




Discussion :

NPCs like nanoemulsions are among antigen delivery systems that transport associated antigens into immune cells and provide their stability before reaching the antigen-presenting cells 30,31. Thus, new generation vaccines are most likely made of NPCs in conjunction with recombinant antigens and adjuvants 31. Different nanoparticles, like carbonhydrate-based formulations, liposomes, poloxamers, emulsions and aluminum-based mineral salts, have been used in delivery of L. major antigen to immune system 30,31. In the current study, α-alumina played a key role in autophagy induction through macrophage responses to control L. infection. CPB and CPA cysteine proteinases have also been used for conjugation to nanoparticles as a virulence factor of L. major in order to produce the new generation vaccines 32,33. In the current study, to prepare a reproducible protein source, the whole coding sequence of the CPB and CPA cysteine proteinases of L. major was successfully cloned using pET28a (+) vectors. pET28a-CPA and -CPB showed the efficient expression rate in E. coli BL21. For purification of His-tagged rCPB and rCPA in the form of inclusion bodies, buffers containing high concentrations of urea (8 M) were used. After removing the denaturing agent, the purified proteins in soluble form were achieved. Subsequently, prepared proteins were used for conjugation to α-alumina using a chemoselective ligation method. According to this procedure, α-alumina particles were functionalized initially with carboxyl group and then coupled with aminobenzaldehyde by amide bond formation using EDC. Then, the aldehyde functionalized nanoparticles were conjugated to hydrazine-modified protein. As demonstrated in table 1, different concentrations of α-alumina were applied in conjugation with constant amounts of protein to find better α-alumina concentration for maximum loading of 92 and 83% for CPA and CPB, respectively. To confirm the conjugation process, after each chemical step, a lyophilized sample was analyzed by FTIR method. According to FTIR results, formation of new chemical bonds, especially hydrazone band between protein and α-alumina was confirmed. In addition, UV-visible spectrophotometer was used to analyze proteins conjugated to α-alumina, represented in both black and blue color lines (Figure 6), indicating the absorbance at both 240 nm (α-alumina) and 280 nm (CPA/CPB). Similar conjugation method has been reported by Li et al regarding ovalbumin protein conjugation to α-alumina 34. In the current study, peritoneal macrophages were used to evaluate the effects of α-alumina -conjugated with CPA and CPB proteins on autophagy induction. Brewer thioglycollate medium stimulation was used for macrophage preparation because of its effect on monocyte-macrophage migration from blood to peritoneal cavity resulting in more macrophage harvest. Thioglycollate stimulation may also affect macrophage function; however, Brewer thioglycollate formulation has less effect according to the previous studies 35. Before nanoparticle application to autophagy induction, the cytotoxic effect was measured and the amount ≤100 ug/ml was introduced as non-cytotoxic concentration. This result was in accordance with the study of Dang et al, in which they have showed that cells lose their activities at higher concentrations of α-alumina 36. Internalization potential of nanoparticles to macrophages at different concentrations was confirmed using a fluorescence microscope and flow cytometry. There was no linear correlation between increased dose of α-alumina and internalized particle. According to our results, 90% of macrophages received particles at concentration of 10 μg that was followed by 94.4 and 98% at concentrations of 100 and 200 μg, respectively, suggesting that there is no significant difference in this regard among various concentrations of α-alumina. So, the optimum dose for internalization in most cells is 10 μg, but the maximum internalization happened at 100 μg, according to the Mean Fluorescent Intensity (MFI). No significant difference was seen in MFI between 100 and 200 μg, so the concentration of 100 μg was used for autophagy assessment. Furthermore, acridine orange staining revealed that α-AL2O3-CPA and -CPB are potent autophagy inducers. There was no report on the autophagy induction by CPA and CPB in macrophages, but Williams has reported their effects in facilitating effective differentiation in L. Mexicana through autophagy 33.  Many nanomaterials were reported to change the basal level of autophagy 5,37. Chen et al have studied the correlation between α-AL2O3 nanoparticles and mitochondria dysfunction that leads to autophagy 38. In another study by Li et al, they have showed that α-AL2O3 nanoparticles at two sizes (60 and 200 nm) induce autophagy effectively and exhibit potent antitumor capability 34. A number of studies have also indicated that alum induces IL-1β via the Nlrp3 inflammasome that results in autophagy 38,39. In the current study, the mechanism of autophagy induction by nanoparticle was not investigated; however, all the mentioned studies have showed the mechanisms of α-AL2O3-induced autophagy. Furthermore, due to discovery of diverse effects of new nanoparticles on immune system, further research remains to be done to achieve the desired effects on immune system.




Conclusion :

In this study, α-alumina nanoparticle-conjugated antigen method and characterization of conjugated products were demonstrated. In addition, the products were applied in autophagy measurement. The results confirmed the high efficacy of nanoparticle for antigen delivery and autophagy induction. Activation of autophagy pathway may facilitate antigen cross-presentation that leads to proliferation of antigen-specific CD8 T cell that can be a promising effect of nanoparticles in future vaccine formulations. However, further study is necessary to assess the long-term effect.




Acknowledgement :

We acknowledge that the funding for this study was provided by Tarbiat Modares University. There is no conflict of interest in this study.

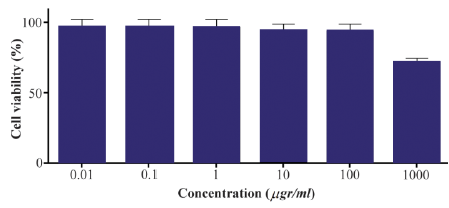

<p>Figure 10. Effect of different concentrations of alpha-alumina nanoparticle on macrophage cell viability.</p>

Figure 10. Effect of different concentrations of alpha-alumina nanoparticle on macrophage cell viability.

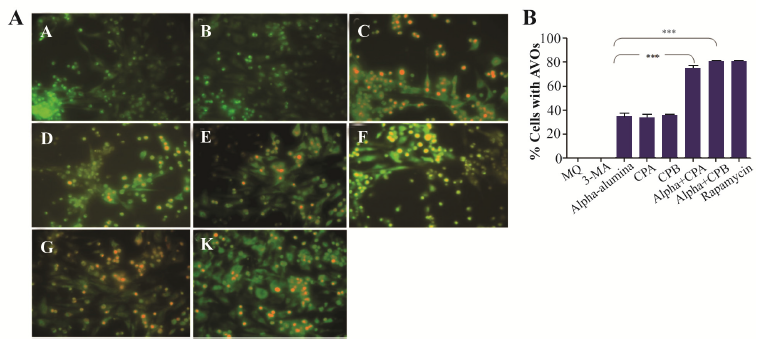

<p>Figure 11. &alpha;-alumina-CPA/CPB potently induce autophagy in peritoneal macrophages. After treatment with &alpha;-AL<sub>2</sub>O<sub>3 (</sub>D, E), &alpha;-AL<sub>2</sub>O<sub>3</sub>-CPA (F), &alpha;-AL<sub>2</sub>O<sub>3</sub>-CPB (G), soluble CPA, CPB (K, L), for 48 h, peritoneal macrophages were stained with AO as described in the Material and Methods and detected by fluorescence microscopy. Non-treated macrophage (A), 10 <em>mM</em> 3-MA treated macrophage (B) and Rapamycin treated macrophage served as negative and positive controls (C).</p>

Figure 11. α-alumina-CPA/CPB potently induce autophagy in peritoneal macrophages. After treatment with α-AL2O3 (D, E), α-AL2O3-CPA (F), α-AL2O3-CPB (G), soluble CPA, CPB (K, L), for 48 h, peritoneal macrophages were stained with AO as described in the Material and Methods and detected by fluorescence microscopy. Non-treated macrophage (A), 10 mM 3-MA treated macrophage (B) and Rapamycin treated macrophage served as negative and positive controls (C).

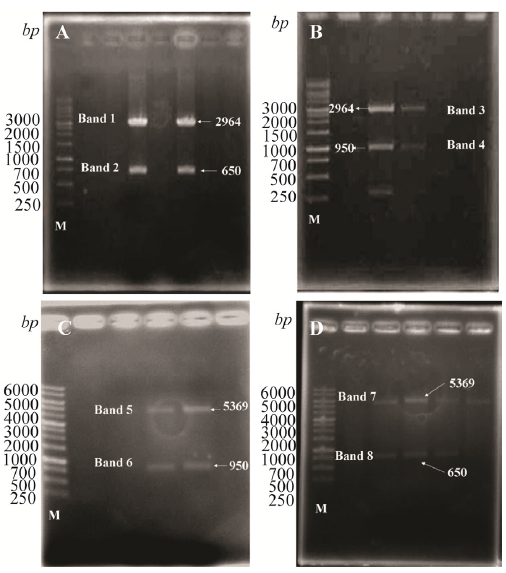

<p>Figure 1. Digestion analysis of pJET1.2-CPA; A) pJET1.2-CPB; B) PET28a-CPA; C) and PET28a-CPB; D) with HindIII and BamH1. Band 1, 2:pJET1.2 (2964 <em>bp</em>) and CPA (650 <em>bp</em>), Band 3, 4: pJET1.2 ( 2964 <em>bp</em>) and CPB (950 <em>bp</em>), Band 5, 6: PET28a (5369 <em>bp</em>) and CPB (950 <em>bp</em>), and Band 7,8: PET28a (5369 <em>bp</em>) and CPA (650 <em>bp</em>).</p>

Figure 1. Digestion analysis of pJET1.2-CPA; A) pJET1.2-CPB; B) PET28a-CPA; C) and PET28a-CPB; D) with HindIII and BamH1. Band 1, 2:pJET1.2 (2964 bp) and CPA (650 bp), Band 3, 4: pJET1.2 ( 2964 bp) and CPB (950 bp), Band 5, 6: PET28a (5369 bp) and CPB (950 bp), and Band 7,8: PET28a (5369 bp) and CPA (650 bp).

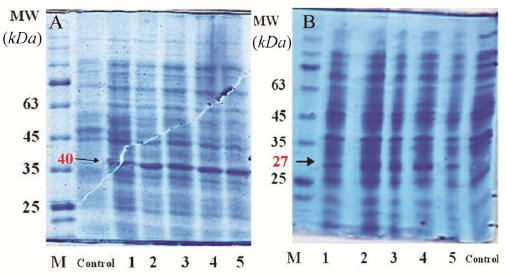

<p>Figure 2. SDS PAGE for crude lyaste of <em>E. coli</em> transformed with the PET28a-CPA; A) and PET28a-CPB; B) Control: <em>E. coli</em> BL21 strain, lane 1: <em>E. coli</em> BL21 strain before induction at time 0, lane 2: <em>E. coli</em> BL21 strain one hour after induction, lane 3: <em>E. coli</em> BL21 strain two hours after induction, lane 4: <em>E. coli</em> BL21 strain three hours after induction, and lane 5: <em>E. coli</em> BL21 strain four <em>hr</em> after induction.</p>

Figure 2. SDS PAGE for crude lyaste of E. coli transformed with the PET28a-CPA; A) and PET28a-CPB; B) Control: E. coli BL21 strain, lane 1: E. coli BL21 strain before induction at time 0, lane 2: E. coli BL21 strain one hour after induction, lane 3: E. coli BL21 strain two hours after induction, lane 4: E. coli BL21 strain three hours after induction, and lane 5: E. coli BL21 strain four hr after induction.

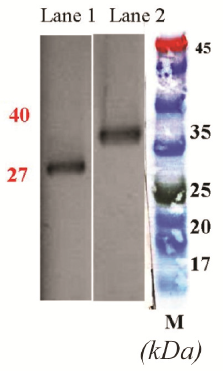

<p>Figure&nbsp; 3. Western blot analysis of L.major CPA and CPB expression in DH5&alpha; using HRP-conjugated anti-His tag polyclonal antibody. Lane 1: Purified rCPA, lane 2: Purified rCPB, M: molecular weight marker.</p>

Figure  3. Western blot analysis of L.major CPA and CPB expression in DH5α using HRP-conjugated anti-His tag polyclonal antibody. Lane 1: Purified rCPA, lane 2: Purified rCPB, M: molecular weight marker.

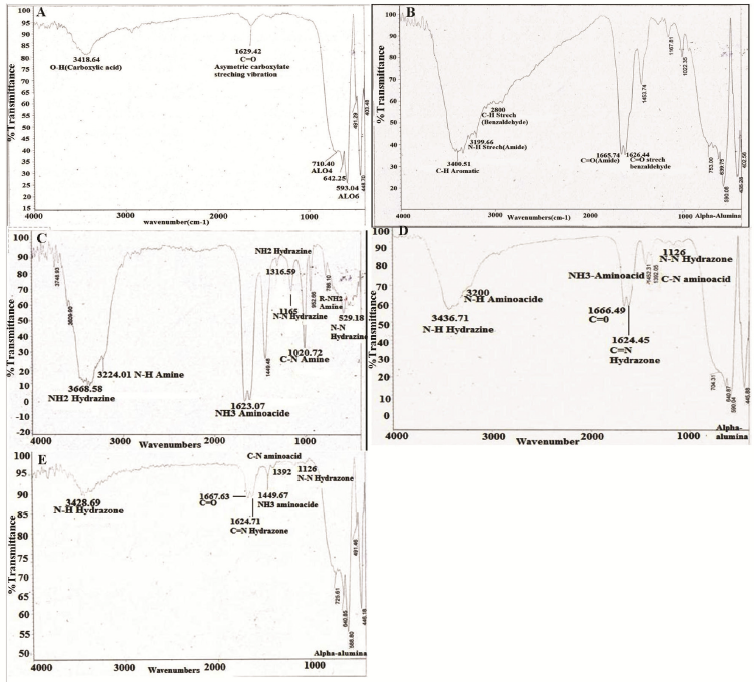

<p>Figure 4. FTIR spectra analysis of; A) &alpha;-alumina particles functionalized with carboxyl group, B) Alpha alumina particles modified with benzaldehyde compound, C) CPA proteins modified with hydrazine compound, and (D, E) &alpha;-alumina conjugated&nbsp; with CPB and CPA&nbsp; by hydrazone band.</p>

Figure 4. FTIR spectra analysis of; A) α-alumina particles functionalized with carboxyl group, B) Alpha alumina particles modified with benzaldehyde compound, C) CPA proteins modified with hydrazine compound, and (D, E) α-alumina conjugated  with CPB and CPA  by hydrazone band.

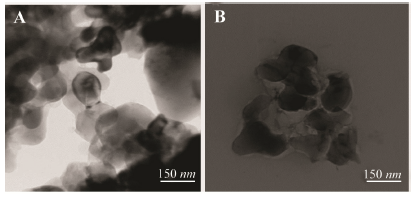

<p>Figure 5. TEM images of &alpha;-alumina, A) &alpha;-alumina particles modified with benzaldehyde compound (&times;80,000), and B) &alpha;-alumina particles conjugated with CPA, CPB (80,000).</p>

Figure 5. TEM images of α-alumina, A) α-alumina particles modified with benzaldehyde compound (×80,000), and B) α-alumina particles conjugated with CPA, CPB (80,000).

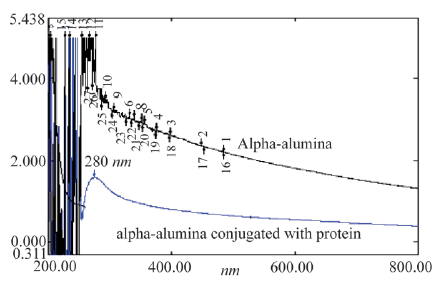

<p>Figure 6. Spectra UV-visible of &alpha;-alumina (black) and &alpha;-alumina conjugated with CPA, CPB (blue).</p>

Figure 6. Spectra UV-visible of α-alumina (black) and α-alumina conjugated with CPA, CPB (blue).

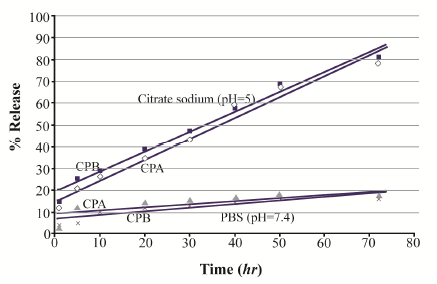

<p>Figure 7. <em>In vitro</em> release profile of CPA and CPB from alpha-alumina nanoparticles in PBS (pH=7.4) and citrate sodium buffer (pH=5).</p>

Figure 7. In vitro release profile of CPA and CPB from alpha-alumina nanoparticles in PBS (pH=7.4) and citrate sodium buffer (pH=5).

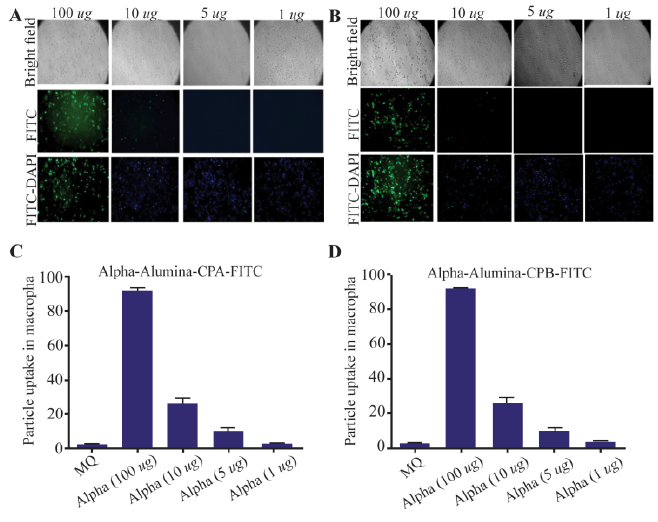

<p>Figure 8. Internalized &alpha;-alumina-CPA/CPB-FITC by murine macrophages. A) Fluorescent microscopy of internalized &alpha;-alumina -CPA-FITC(A), &alpha;-alumina -CPB-FITC(B) by murine macrophages after 30 <em>min</em> exposure to 1, 5, 10 and 100 <em>&mu;g</em> of different concentrations (&times;20). C and D show semiquantitative analysis of fluorescent microscopy results by Image J software, 83 and 87% of macrophages received CPA and CPB proteins conjugated to nanoparticles, respectively at 100 <em>&mu;g/ml</em> concentration.</p>

Figure 8. Internalized α-alumina-CPA/CPB-FITC by murine macrophages. A) Fluorescent microscopy of internalized α-alumina -CPA-FITC(A), α-alumina -CPB-FITC(B) by murine macrophages after 30 min exposure to 1, 5, 10 and 100 μg of different concentrations (×20). C and D show semiquantitative analysis of fluorescent microscopy results by Image J software, 83 and 87% of macrophages received CPA and CPB proteins conjugated to nanoparticles, respectively at 100 μg/ml concentration.

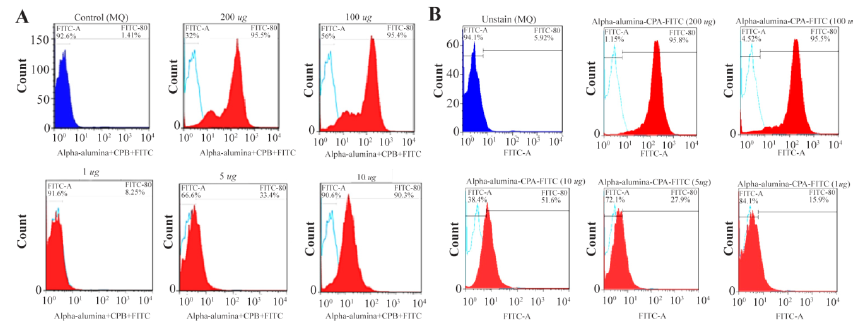

<p>Figure 9. Flowcytometry analysis of internalized &alpha;-alumina-CPA/CPB-FITC by murine macrophages. A) Shows that 8.2, 33.3, 90.3, 94.55 and 96.7% of macrophages received &alpha;-alumina-CPB-FITC labeled particles in the presence of 1, 5, 10, 100 and 200 <em>&mu;g/ml</em> concentrations, respectively. B) Shows that 15, 27, 61, 95 and 98% of macrophages received &alpha;-alumina-CPB-FITC labeled particles in the presence of 1, 5, 10, 100 and 200 <em>&mu;g/ml</em> concentrations, respectively.</p>

Figure 9. Flowcytometry analysis of internalized α-alumina-CPA/CPB-FITC by murine macrophages. A) Shows that 8.2, 33.3, 90.3, 94.55 and 96.7% of macrophages received α-alumina-CPB-FITC labeled particles in the presence of 1, 5, 10, 100 and 200 μg/ml concentrations, respectively. B) Shows that 15, 27, 61, 95 and 98% of macrophages received α-alumina-CPB-FITC labeled particles in the presence of 1, 5, 10, 100 and 200 μg/ml concentrations, respectively.

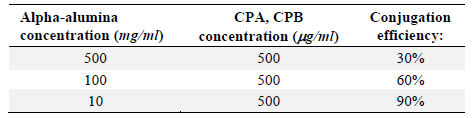

<p>Table 1. The conjugation efficacy of CPA and CPB to &alpha;-alumina nanoparticle at different &alpha;-alumina concentrations</p>
